Maestro !

Experience Trailer

The Concept

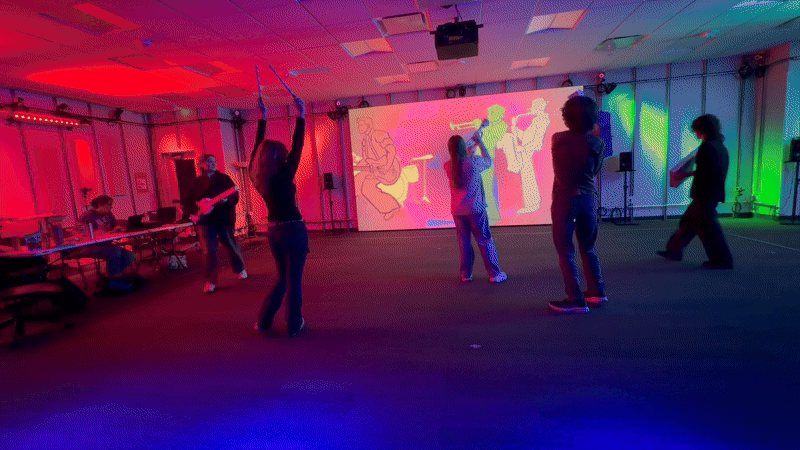

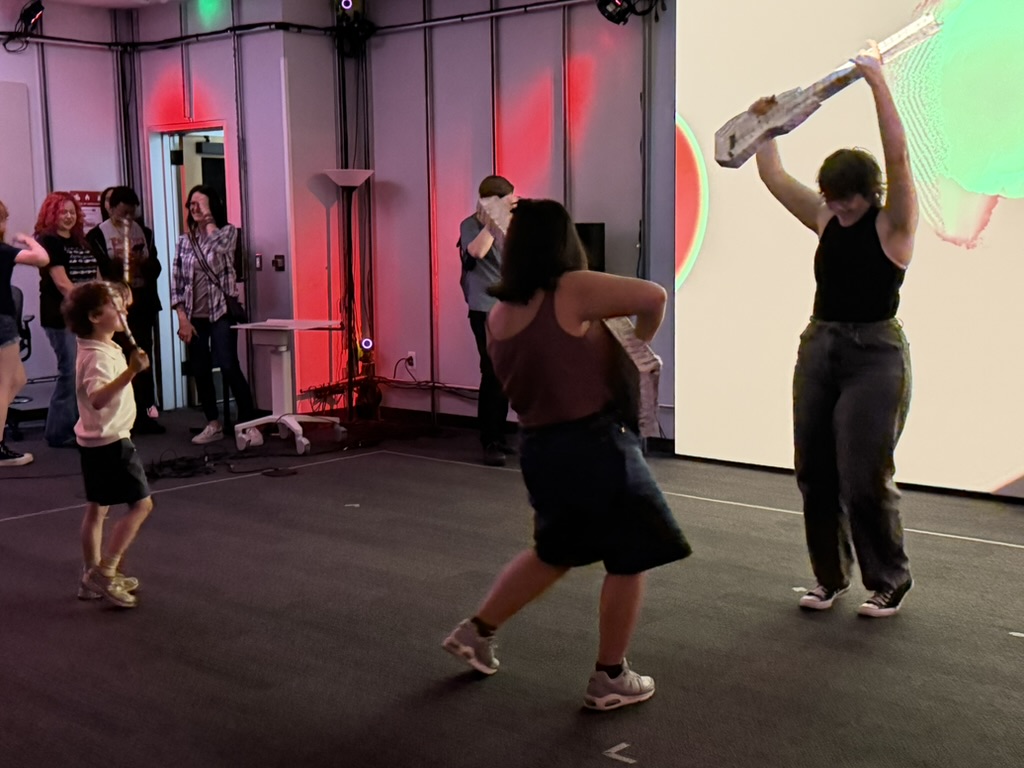

Maestro! transforms the LIM Lab into a jazz fusion band you play with your body. Five paper mache instruments — saxophone, trumpet, drums, electric keyboard, and bass guitar — sit in the space. When a guest picks one up and moves around with it, that instrument’s part of the song comes to life. Position affects spatialization. Held height affects volume. Rotation affects effects. As more instruments get picked up, the full ensemble fills out.

The composers wrote three original three-minute jazz pieces with five instruments: keytar, drums, bass, saxophone, and trumpet. The audience plays them.

My Contributions

This case study focuses on the systems I built between the motion capture data and everything else. My job was to take raw 6DoF tracking data from QTM and turn it into something the composers and visual artists could actually use — scaled, named, and routed to the right places. I also led the overall development and refinement of the experience. Figuring out not just what is technically a responsive interaction, but what really feels like an interaction to the user was a huge part of the work, and I was deeply involved in that process from start to finish. I built the core system, then iterated on it in response to playtesting feedback and composer/artist needs until we had a polished final product.

The Team — Oui-Pittt

The Core Problem

QTM gives you raw 6DoF data: X, Y, Z position in millimeters, and rotation as Euler angles. It comes out of the system fast and accurate, but it is not art-ready. A composer working in Ableton doesn’t want to think about millimeters. A visual artist working in TouchDesigner doesn’t want to deal with -3000 to 3000 value ranges. They want the data in the shape their tools already speak: MIDI 0–127 for audio, normalized -1 to 1 for visuals.

On top of that, there were a few different computers involved. The QTM-to-TouchDesigner pipeline lived on one machine (mine). Ableton lived on another (the composers’). The visuals were running on another computer in TouchDesigner and Resolume. Everything had to agree about what each instrument’s data meant.

System Architecture

Here is how the data flows from markers on an instrument to sound coming out of the speakers:

┌──────────────────────┐
│        QTM           │  (Qualisys Track Manager)
│  6DoF object stream  │  X, Y, Z, rx, ry, rz per object
└──────────┬───────────┘
         │ OSC
┌──────────▼───────────┐
│   TouchDesigner      │  (my machine)
│                      │
│  ┌────────────────┐  │
│  │ Python Layer   │  │  parse → registry → velocity
│  │ (uniform math) │  │   → pose detection
│  └────────┬───────┘  │
│           │          │
│  ┌────────▼───────┐  │
│  │ Node Layer     │  │  per-instrument mapping
│  │ (per-inst.     │  │    math that "feels right"
│  │  tweaking)     │  │
│  └────────┬───────┘  │
│           │          │
│       ┌───┴───┐      │
│       │       │      │
│  ┌────▼──┐ ┌──▼───┐  │
│  │ MIDI  │ │ Norm │  │  two separate tables,
│  │ 0-127 │ │ -1→1 │  │  two separate OSC streams
│  └───┬───┘ └──┬───┘  │
└──────┼────────┼──────┘
     │        │
     │        └────► visuals (Jovanna, Jennifer, Jeremy)
     │
┌──────▼───────┐
│  Chataigne   │  (composers' machine)
│  OSC → MIDI  │
└──────┬───────┘
     │
┌──────▼───────┐
│   Ableton    │  spatial audio, volume, effects
│  3 pieces    │  one instrument per track
└──────────────┘

The two big architectural decisions I made were:

• Split the logic between Python and TouchDesigner nodes based on what kind of operation it is.
• Send two different OSC streams downstream: one pre-mapped to MIDI range, one normalized, so each consumer gets data in its native language.

Python vs. Nodes: Where Logic Lives

The first question I kept running into was: where should a given piece of logic live? Python script or TouchDesigner node network? I ended up with a rule that held up well through the whole project.

Nodes are better for that kind of work because the numbers are visible, adjustable by dragging a slider, and scoped to a specific instrument without affecting anything else. Python gives you the mathematically correct, universal values in a clean table. The nodes take those values and shape them into what each instrument actually needs.

The Python Layer

The Python side is a small, clean registry pattern. A MocapRegistry holds a dictionary of TrackedObject instances, keyed by name. When OSC comes in from QTM with an address like /qtm/6d_euler/saxophone, the registry either updates the existing saxophone object or creates a new one. The scale factor (0.001) converts millimeters to meters at the boundary, so everything downstream is in meters.

@dataclass
class TrackedObject:
  name: str
  px: float = 0.0
  py: float = 0.0
  pz: float = 0.0
  rx: float = 0.0
  ry: float = 0.0
  rz: float = 0.0
  spatial: float = 0.0
  # for the drumsticks
  prev_px: float = 0.0
  prev_py: float = 0.0
  prev_pz: float = 0.0
  velocity: float = 0.0
  last_updated: float = 0.0

  def set_position(self, x, y, z):
      self.px, self.py, self.pz = x, y, z
      self.last_updated = time.time()
      self.spatial = math.atan2(y, x)

A few design choices worth calling out:

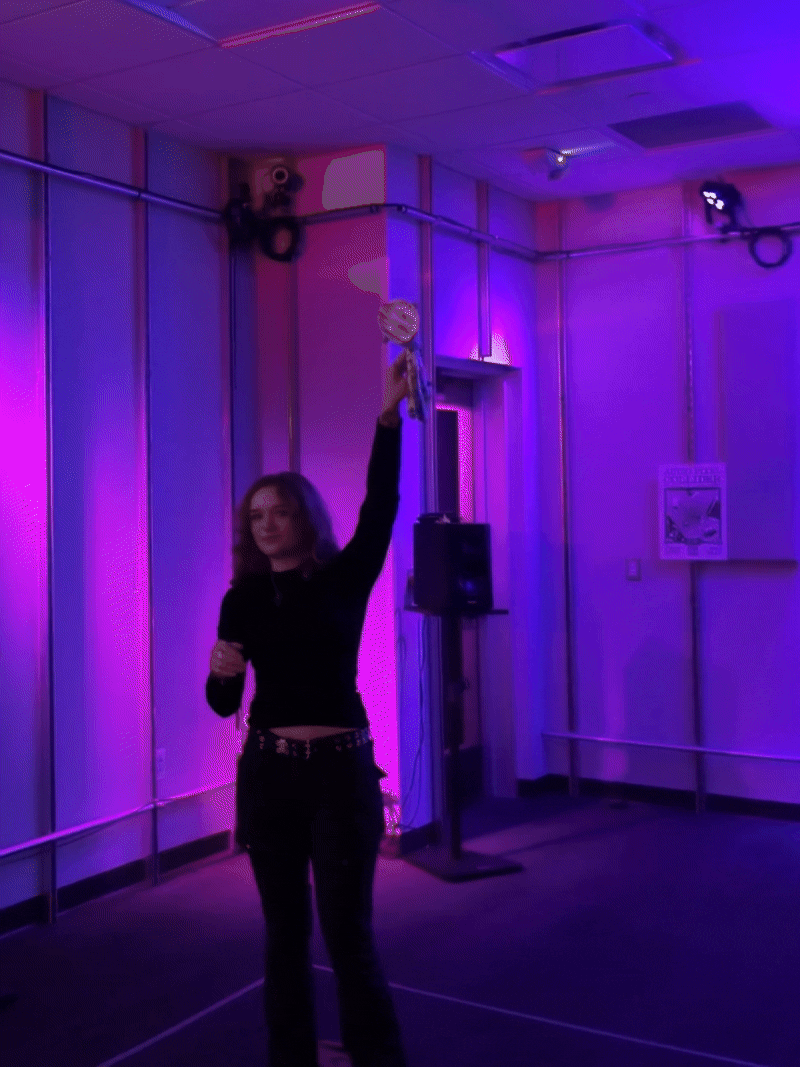

atan2(y, x) for spatial position. This gives you an angle in radians from -π to π that describes where an object is around the room, not just in Cartesian space. Distance from center (via sqrt(x² + y²)) handles the “far from audience vs. close to audience” axis. Together these two values give you a polar coordinate system that maps naturally to how people think about being somewhere in a room. I used these spatial parameters to drive the panner in Ableton, which was connected to our 10-speaker spatial audio setup. The angle determined the speaker number and the distance from center determined the distance variable in that speaker.

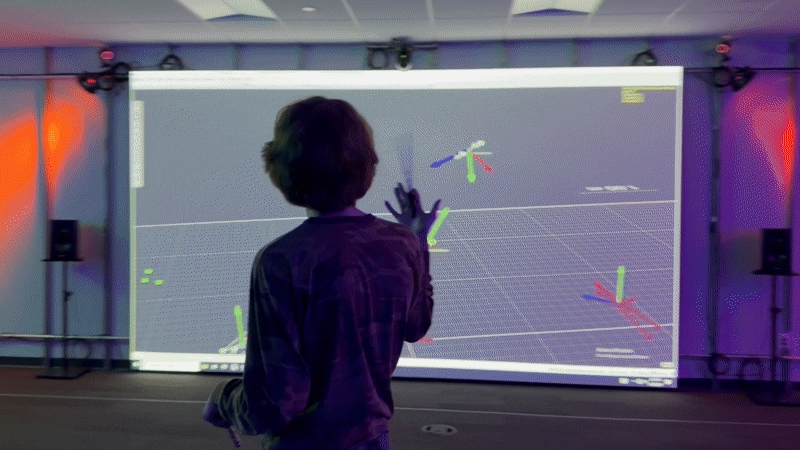

Frame-delta velocity, but only for the drumsticks. Drumsticks are the one instrument where hitting something matters — a fast downward motion should register as a drum hit, not as ambient positional data. So every frame, I subtract the previous position from the current position, compute the magnitude, and store that as velocity. I only update velocity for drumsticks because for the other instruments it’s noise — a guest slowly moving the sax around the room doesn’t need a velocity channel. This also solved a practical motion capture issue: the drumsticks are more difficult to track because they’re straight sticks, and you need to be able to hold them, making traditional markers impractical. We ended up using reflective tape, which worked for position, but the rotation data was very jittery and unreliable. By using velocity as the main trigger for the drums instead of rotation, we were able to have a responsive drum part without needing clean rotation data from the drumsticks.

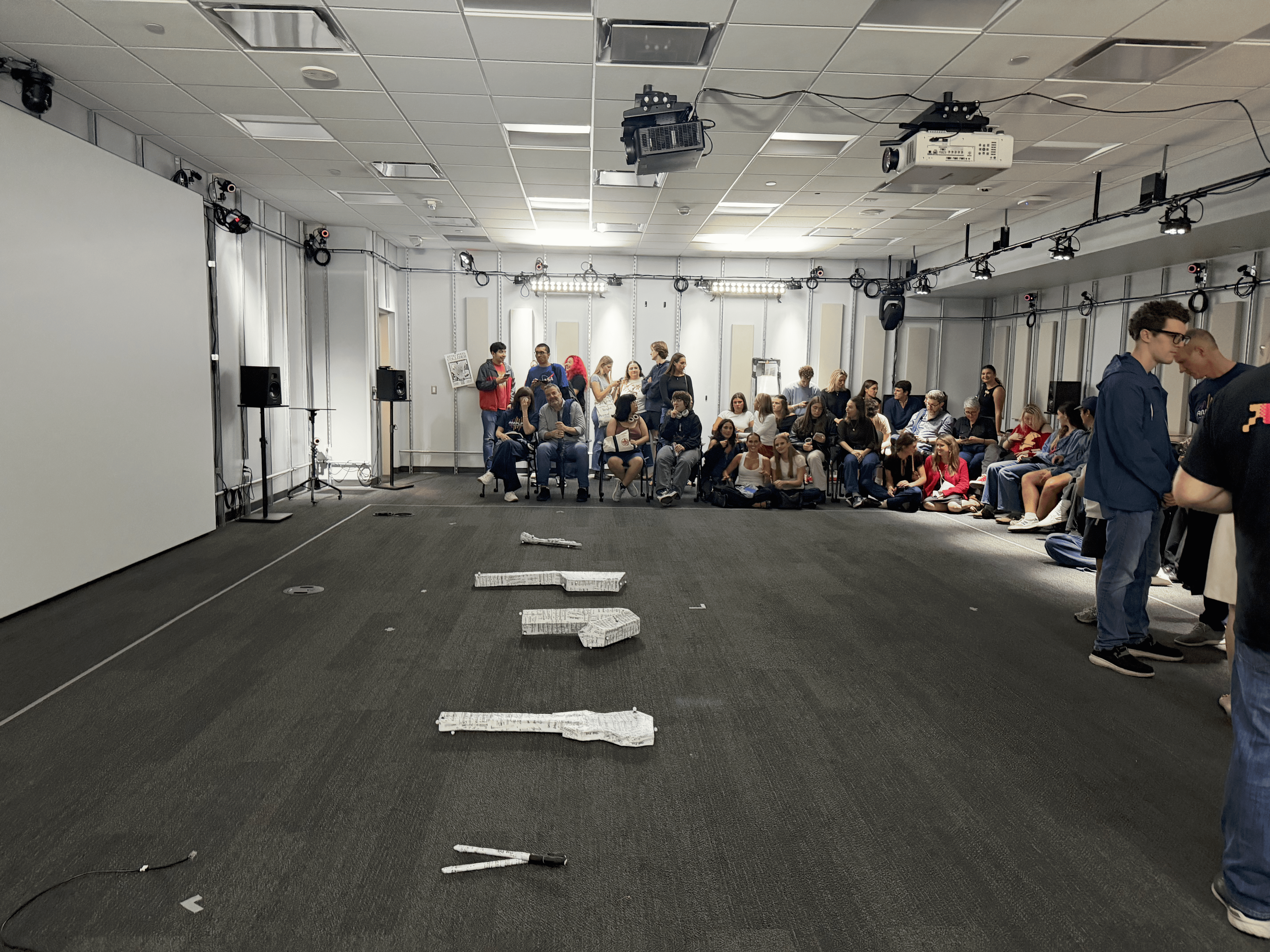

Cleanup with last_updated. If a guest puts down an instrument and walks away, QTM eventually stops seeing it, which can cause errors downstream in the sound and visual connections. The registry has a cleanup(max_age=1.0) method that drops any object that hasn’t been updated in the last second. This prevents stale data from sitting in the output tables.

The Pose Detector

Sitting on top of the registry is a pose detection layer that watches the overall state of all tracked objects and fires higher-level events — not something simple like “where is the sax,” but a more complex calculative like “are all five instruments in the four corners of the room right now?” These are collaborative states — things that only happen when multiple guests coordinate.

I built three pose types:

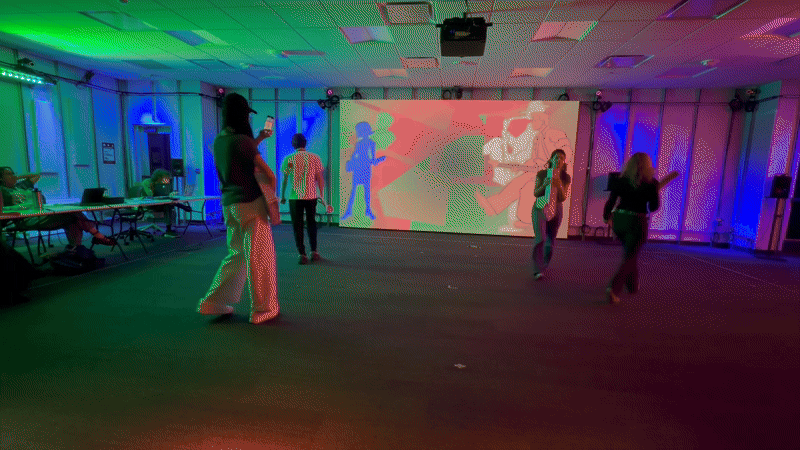

• four_corners: all five instruments roughly in the four corners of the room

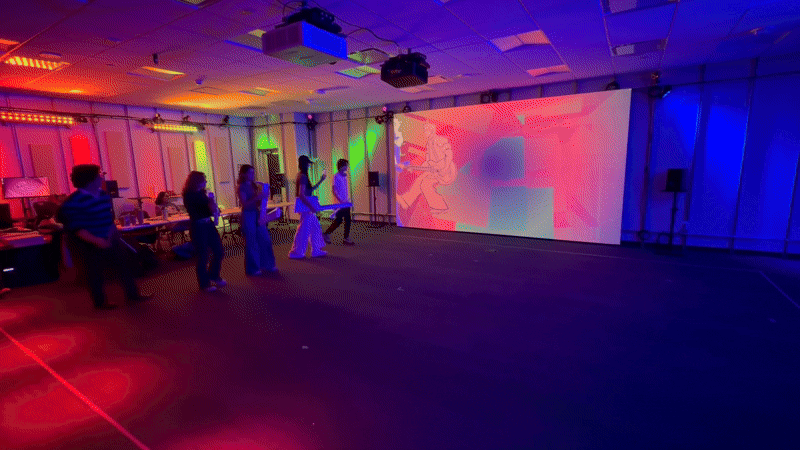

• line_x / line_y: all instruments aligned along the X or Y axis
• clustered: all instruments grouped tightly together

The detector takes lambdas, so adding a new pose is just one line:

detector.add('clustered', lambda reg, t:
  objects_clustered(reg, threshold=t))

Each pose returns both a boolean (active/inactive) and a value (the Y position of the line, the center of the cluster, etc.), so artists could use them as triggers or as continuous values, whichever they wanted. This ended up being a really fun part of the system, because it encouraged group play and made the experience more than just “move an object around and hear a sound.” It created moments where guests had to work together to discover the hidden poses and unlock new and exciting interactions.

Per-Instrument Mapping in Nodes

Here is the inside of the per-instrument mapping component:

One of these exists for each of the five instruments. They all have the same shape but different numbers, because each instrument’s mapping was tuned separately.

The network takes one tracked object in, splits its data into channels (rotation, X position, Y position, Z position, spatial angle, distance from center), runs each channel through a select → math → null chain, and merges the output back out. The math nodes are where the per-instrument tuning happens. That’s where I’d change the Z position mapping for the trumpet from “0 to 5 meters → 0 to 1” to “0.5 to 1.5 meters → -1 to 1” because that was the height range people actually held it at.

This copy-paste-and-adjust pattern is honestly one of the things I love about TouchDesigner. Python is better for logic that should be identical across objects. Nodes are better for logic that should be structurally identical but numerically different. You duplicate the network, relabel it, and tweak the numbers without ever touching code.

The Two-Stream Split

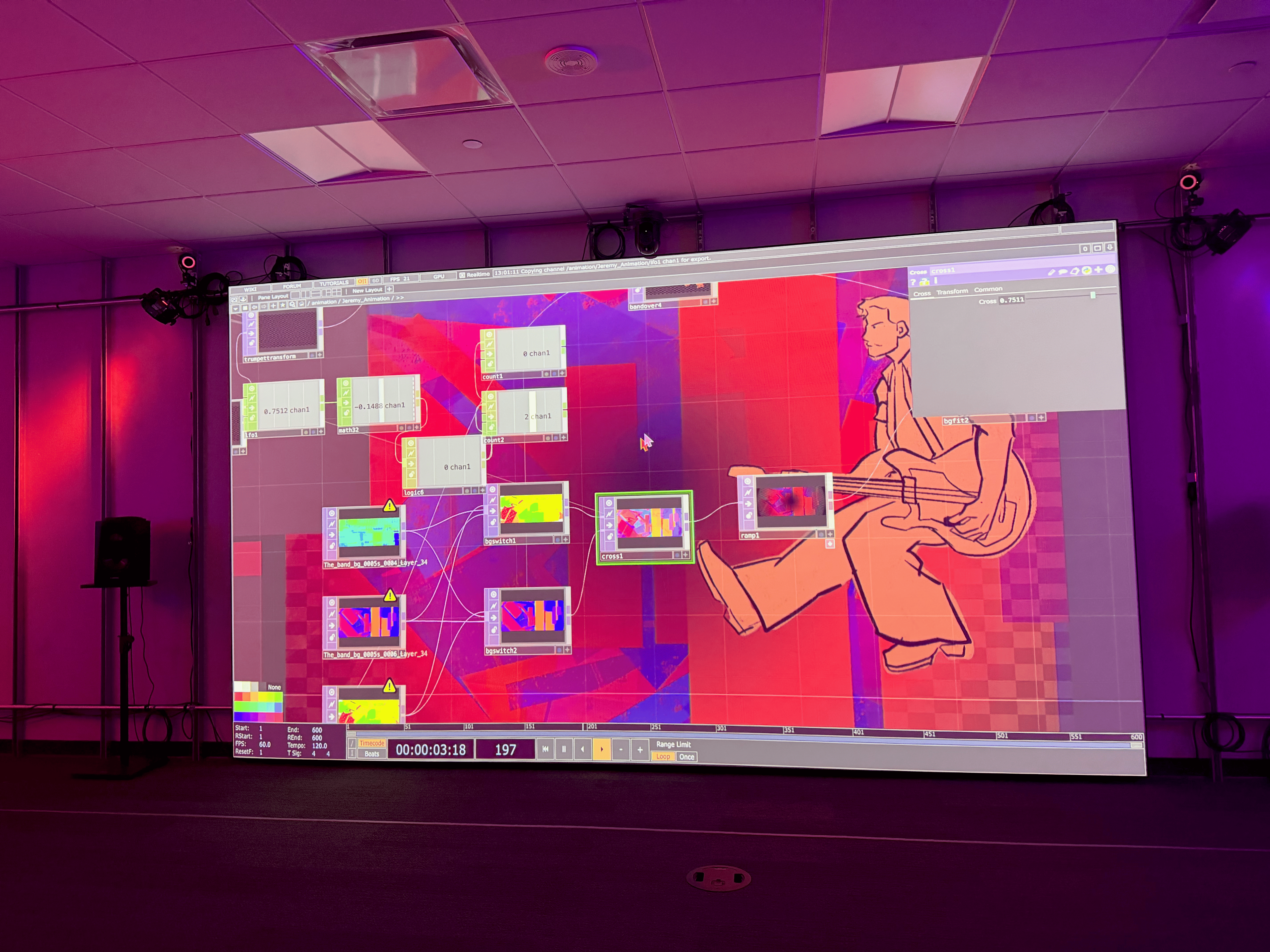

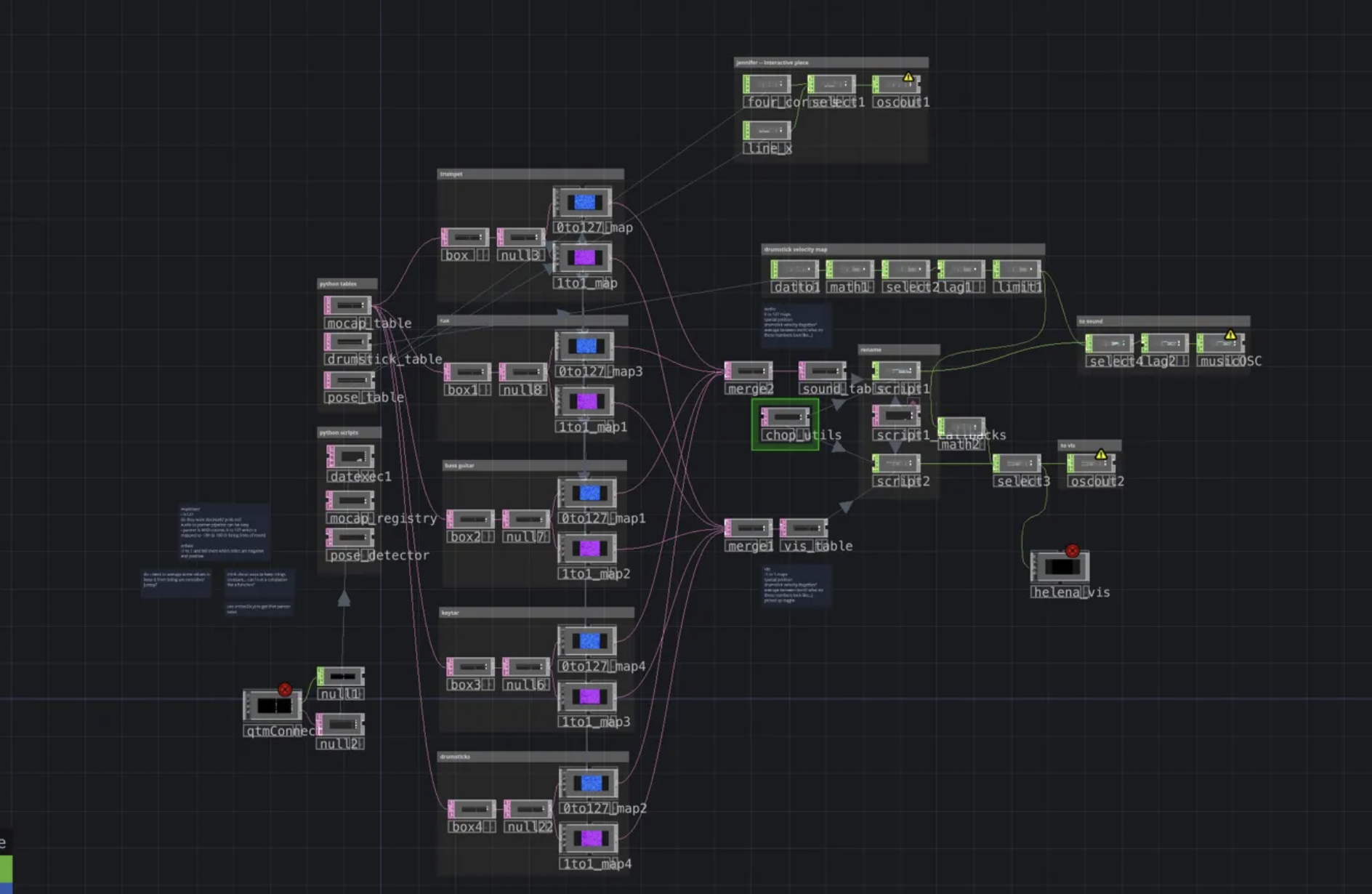

Here is the higher-level node view, showing the per-instrument mappers feeding into the two separate output streams:

The same source table (the Python output) gets routed through two parallel mapping chains. One goes through a 0to127_map and produces MIDI-scaled values for Ableton. The other goes through a 1to1_map and produces normalized floats for visuals. Both streams end at a chop_utils script that converts the table into CHOP channels, which then get sent out over OSC.

The chop_utils script is short and does one job — turn a table DAT into a CHOP with meaningfully-named channels:

def datToChops(scriptOp, dat):
  scriptOp.clear()
  params = [dat[0,c].val for c in range(1, dat.numCols)]
  for r in range(1, dat.numRows):
      name = dat[r, 0].val
      for ci, param in enumerate(params):
          chan_name = f'{name}_{param}'
          chan = scriptOp.appendChan(chan_name)
          chan[0] = float(dat[r, ci + 1].val)

So if the table has a row drumstickone with columns x, y, z, velocity, the CHOP ends up with channels named drumstickone_x, drumstickone_y, drumstickone_z, drumstickone_velocity. From the downstream artist’s point of view, these channels are the API. They don’t need to know anything about the table, the registry, the Python, or the mapping nodes. They just patch drumstickone_velocity into whatever they want it to control.

Chataigne: Crossing the Machine Boundary

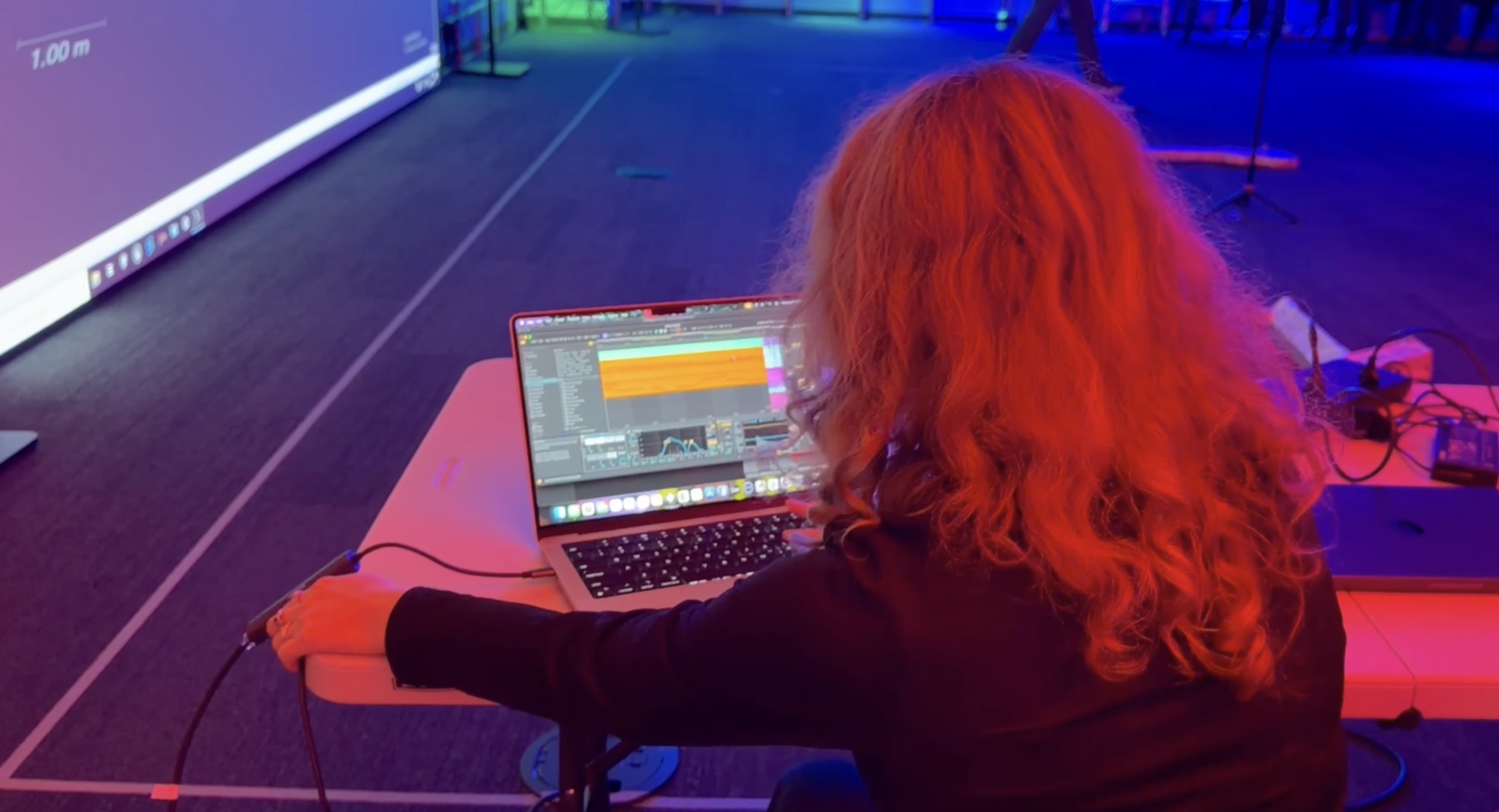

Ableton was running on a different computer than TouchDesigner, and Ableton doesn’t speak OSC directly — it wants MIDI. So between my machine’s OSC output and the composers’ Ableton session, we needed a translator.

Chataigne is built for exactly this. It listens for OSC on one side, maps each address to a MIDI CC on the other side, and forwards the values to Ableton via a virtual MIDI port. The composers and I would work together to create interactions that work well with the music but also are noticeable to a non-musician, and we would wire that up in Chataigne and MIDI map it to Ableton.

The main thing I had to learn here was MIDI itself. I knew the range was 0–127 and I knew each track in Ableton could MIDI-map its parameters, but I had not actually built anything in MIDI before. Understanding CC vs. note messages, how channels work, how Ableton maps incoming CCs to parameters — all of that was new. Once we had one instrument working end-to-end (Python → TD nodes → OSC → Chataigne → MIDI → Ableton → sound), the rest was mostly copying the pattern.

The clean thing about having Chataigne in the middle is that the composers could adjust their Ableton-side mappings completely independently of me. If they decided the saxophone’s rotation should control reverb instead of filter cutoff, they just re-mapped the MIDI CC on their side. My pipeline didn’t need to change at all.

Math vs. Feel

The other tension I kept running into was between values that are objectively correct and values that feel right. Some derivations are pure math: atan2(y, x) gives you a spatial angle, and there is exactly one correct answer. Distance from center is sqrt(x² + y²). These don’t need tweaking.

But a lot of the mappings aren’t like that. “How high is high?” depends on whether guests are holding the instrument at their chest or over their head. “What velocity counts as a drum hit?” depends on how heavy the paper mache drumsticks are and how hard people actually swing them. These numbers have to be found empirically. You run a playtest, you watch what people actually do, you adjust the threshold, you run it again.

This is part of why I pushed so hard on the Python/node split. The math-is-math stuff lives in Python, where it’s hard to mess up and easy to trust. The feel-based stuff lives in nodes, where every number is visible and tweakable. When we were in the lab tuning for rehearsal, nobody needed to edit Python. They edited node parameters.

Playtest Pivot: Legibility Over Sophistication

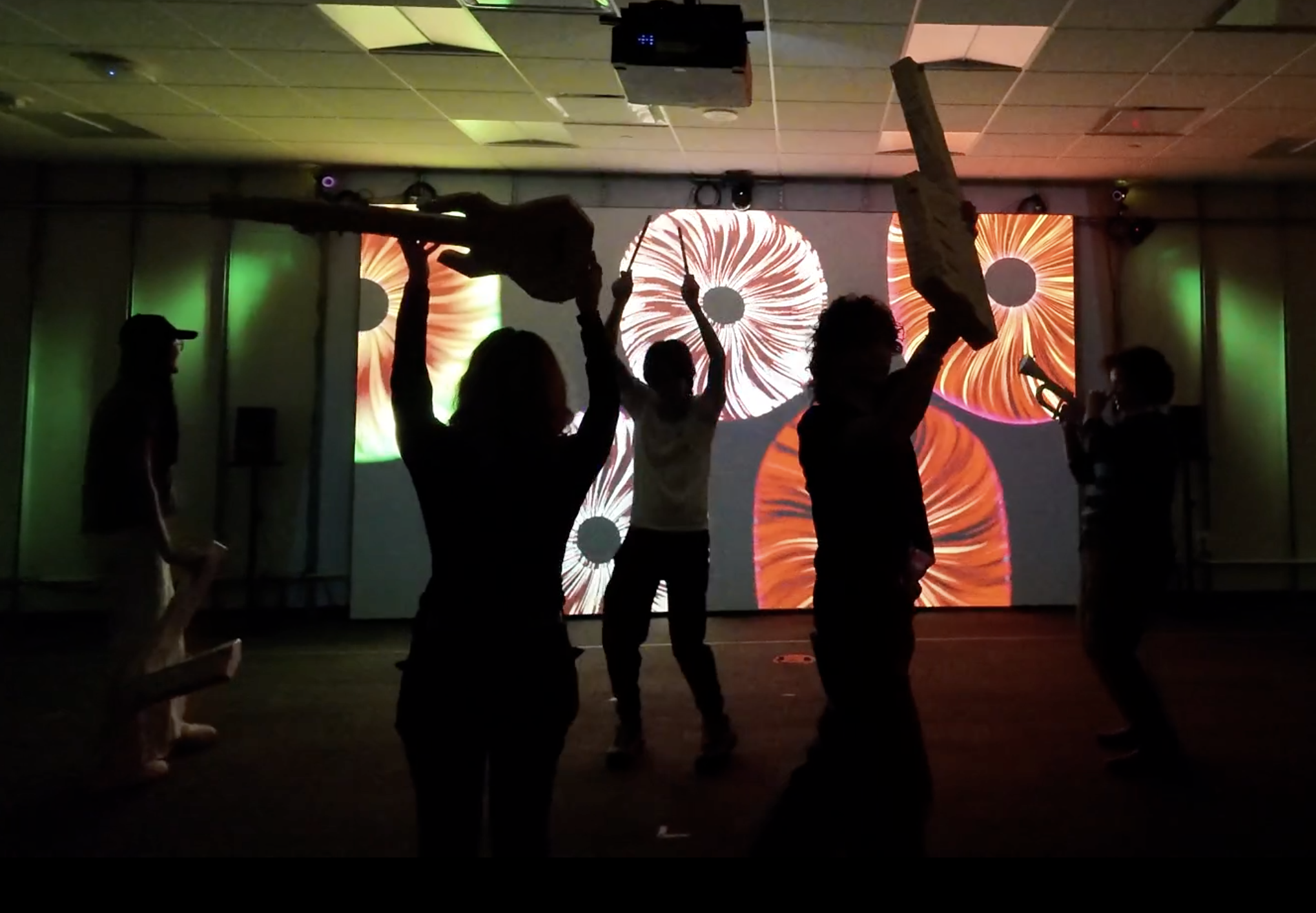

Mid-project, we ran an informal playtest with classmates. The system was mostly working. Guests could pick up instruments, walk around, and hear their part of the song respond. The visuals were running. Everything was technically operational.

What we learned was not a technical problem. It was a perception problem.

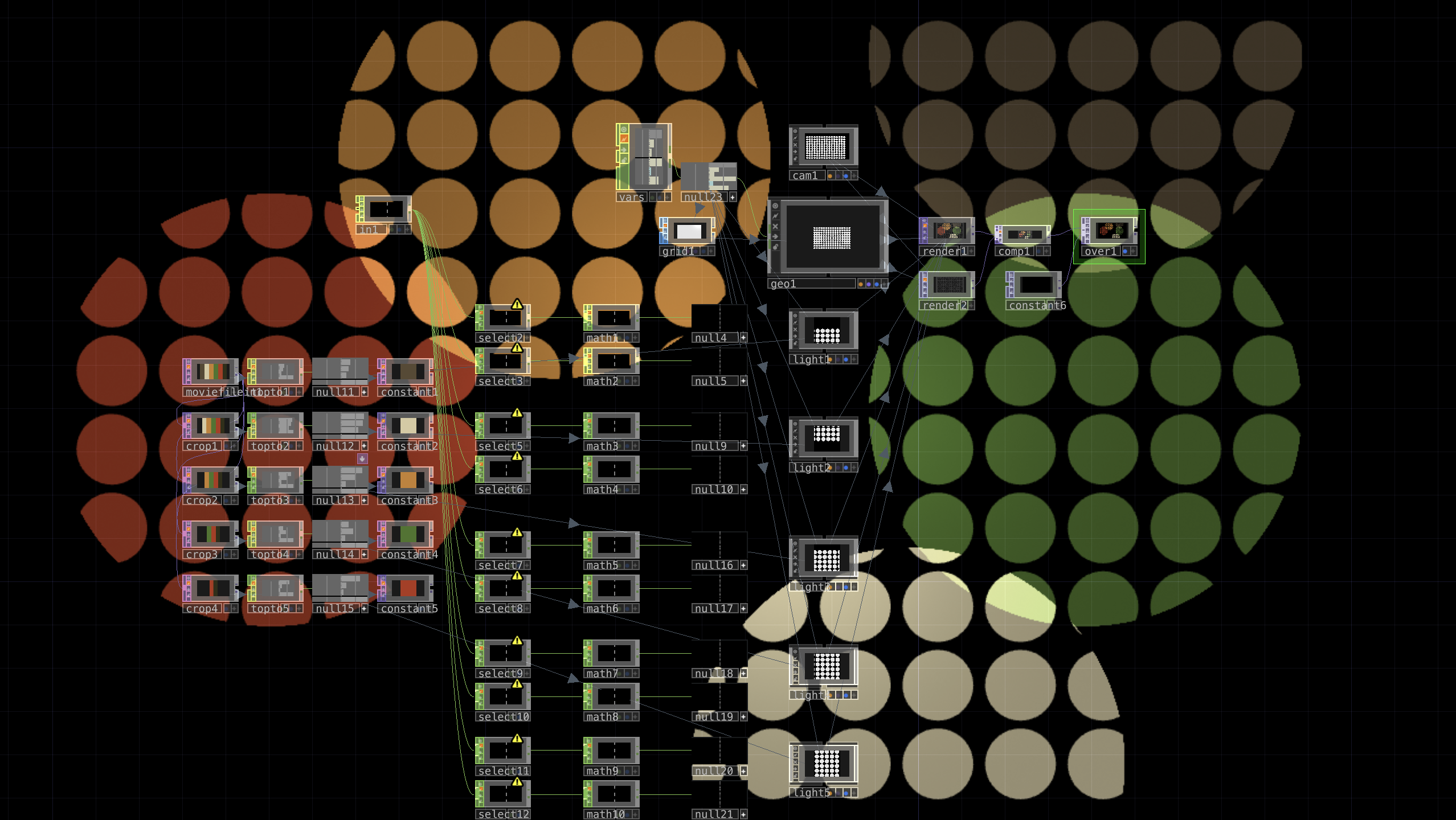

I had built a small demo visual where circles followed each tracked instrument around a top-down map of the room. This was a debug tool as much as anything — I wanted to see at a glance what QTM was tracking and where. It was not the “real” visual.

Meanwhile, the “real” visuals had subtle mappings. Instrument position was driving things like noise parameters and slow color shifts inside a larger generative composition. These were doing real work. The visuals were genuinely reactive, but the reactivity was layered into a bigger piece that had a lot going on.

Playtesters overwhelmingly responded to the debug circles.

People would walk around the room watching the circle track their movement. They would try to overlap their circles with other instruments. They would pick up an instrument, look for the circle, and then pay attention to what else was changing. The subtle noise-parameter mappings went almost entirely unnoticed. When people said “what am I controlling?” the answer they wanted was “that circle, right there, that one,” and when it wasn’t immediately obvious they disengaged.

The system itself didn’t change in response. What changed was the visual mapping strategy. The team started leaning into mappings with clearer, more direct cause-and-effect — big shapes that followed guests, scale changes tied to velocity, color shifts on pose detection triggers — and keeping the subtle generative stuff as background texture rather than as the primary reactive layer. We also leaned into the pose detection, making them easier to trigger and more responsive to movement: a cat animation that popped up when you stood in a line became a cat that moved with you in line.

This ended up being one of the most useful things I took away from the project. I went in thinking about the pipeline as a technical problem (how do I get data from A to B reliably?) and came out thinking about it as a perception problem (how does a guest know their body is driving this?). The answer involves the pipeline, but it’s not about the pipeline.

Reflections

Working on Maestro! taught me that being the systems person on a creative collaboration is a specific kind of role. You are not making the art, you are making the art makeable. The measure of your success is not “did I build something impressive” but “did everyone else get to spend their time on their own craft instead of fighting the tools.”

I am proud of how clean the handoff ended up being. By the end, the composers could work entirely in Ableton. The visual artists could work entirely in TouchDesigner with a clean set of named CHOP channels. Nobody needed to touch my Python code, and nobody needed to understand the QTM side. The pipeline was the pipeline, and it just worked.

The other thing this project made clear is that I really enjoy this kind of work: the translation-layer, make-the-data-useful, sit-between-the-artists-and-the-sensors kind of work. It is half engineering and half design. You are building for an audience of creative collaborators who have their own tools and their own ways of thinking, and your job is to meet them where they are.

What’s Next

I want to build off this system into something more individual. The current pipeline is tuned for a specific performance with specific instruments, but the underlying architecture — a mocap registry in Python, per-object mapping components in TouchDesigner, a two-stream split for different downstream consumers — is reusable. I am interested in building a version of this that is general-purpose enough to drop into other mocap-driven performances or installations without needing to rewrite the guts each time. Something closer to what my Captury Toolkit became for Unity and Unreal, but for TouchDesigner and marker-based tracking.

I also want to keep thinking about the legibility lesson from the playtest. It suggests that the instinct to make things sophisticated might actively work against the instinct to make things interactive, and that designing for interaction specifically means designing for feedback loops people can feel in their bodies. That feels like a thread worth pulling on in future work.
